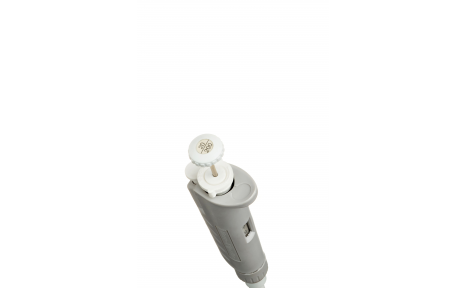

一:产品介绍
·抗紫外线辐射,耐化学腐蚀
·整支高温高压消毒
·任意容量锁定
·动态密封
·自润滑设计,可无油密封
二:产品参数
Model |
Range(µl) |
Increment(µl) |
Volume(µl) |
Accuracy(%) |
Repeatability(%) |
YY-2 |
0.1-2 |
0.002 |
0.2 |
±12.00 |
≤6.00 |
|
|
|
0.5 |
±5.00 |
≤2.50 |
|
|
|
2 |
±1.50 |
≤0.70 |
YY-10 |
0.5-10 |
0.02 |
1 |
±2.50 |
≤1.25 |
|
|
|
5 |
±1.50 |
≤0.60 |
|
|
|
10 |
±1.00 |
≤0.40 |
YY-20 |
2-20 |
0.02 |
2 |
±5.00 |
≤1.50 |
|
|
|
5 |
±2.00 |
≤0.80 |
|
|
|
10 |
±1.00 |
≤0.50 |
|
|
|
20 |
±1.00 |
≤0.30 |
YY-50 |
5-50 |
0.02 |
5 |
±2.00 |
≤1.50 |
|
|
|
25 |
±0.90 |
≤0.50 |
|
|
|
50 |
±0.60 |
≤0.30 |
YY-100 |
10-100 |
0.2 |
10 |
±2.50 |
≤0.70 |
|
|
|
20 |
±1.80 |
≤0.50 |
|
|
|
50 |
±0.80 |
≤0.24 |
|
|
|
100 |
±0.80 |
≤0.15 |
Model |
Range(µl) |
Increment(µl) |
Volume(µl) |
Accuracy(%) |
Repeatability(%) |
YY-200 |
20-200 |
0.2 |
20 |
±2.50 |
≤1.00 |
|
|
|
50 |
±1.00 |
≤0.40 |
|
|
|
100 |
±0.80 |
≤0.25 |
|
|
|
200 |
±0.80 |
≤0.15 |
YY-1000 |
100-1000 |
2 |
100 |
±1.50 |
≤0.30 |
|
|
|
500 |
±0.80 |
≤0.20 |
|
|
|
1000 |
±0.80 |
≤0.15 |
YY-5000 |
500-5000 |
2 |
500 |
±1.00 |
≤0.50 |
|
|
|
2500 |
±0.50 |
≤0.25 |
|
|
|
5000 |
±0.60 |
≤0.16 |
